Textile Fiber Cutting Machine | Fabric Waste Shredder Machine

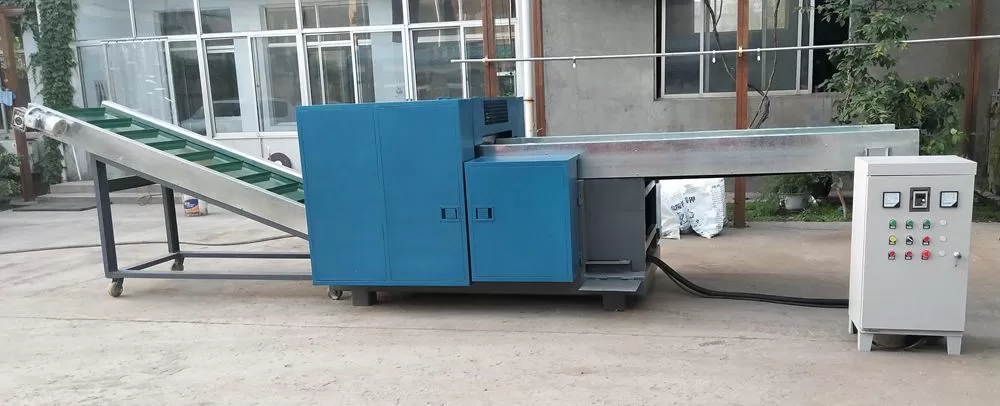

Fiber cutting machine

The textile fiber cutting machine was given different names according to different uses, it is a kind of general waste recycling cutting equipment with a wide range of applications. This fabric waste shredder machine can chop a variety of different types of raw materials according to different requirements, such as waste leather, fabric, clothes, polyester fiber, fiber textiles, yarn, and so on. This textile fiber cutting machine is commonly used in various recycling plants and can be used with fiber opener machine and cotton carding machine.

Functions and characteristics of textile fiber cutting machine

With the continuous progress of human science and technology, all kinds of new, high-tech production of raw materials and then emerge in various application fields, and with the birth of new products, not only quality products, at the same time, there are a lot of unqualified products, waste generation, this kind of waste as a result of nonconforming product and material quality costs are similar, or thrown away it is not possible, and should try to processing and recycling.

Textile fiber cutting machine
Fiber cutting machine

The characteristics of most textile fiber products are not high hardness, but the fiber structure interweaves closely, large tensile force, the shape is not fixed, to cut such materials, cutting treatment is a very difficult thing. Our fiber textile shredding machine is made and designed on the base of better character and advanced experience of similar products domestic and abroad.

In addition, this fabric waste shredder machine can meet the requirement of the best quality, high output, low cost, and also has a feature of reasonable structure, easy operation, safe production, and so on. It can also be combined with other machines into a waste textile recycling line.

Textile fiber cutting machine’s structure & working principle

Textile fiber cutting machines can be used to cut all kinds of fiber rags, such as glass fiber, aramid fiber, textile fiber, and so on. The cutting machine has two fixed blades and four movable blades, the blade is made of alloy tool steel. With the help of the high rotation of movable blades roller, the raw material will be cut into small pieces when they pass the fixed blade.

Large fiber cutting machine
Large fiber cutting machine

The cutting size of the material can be customized and adjusted, the normal size is 3-15cm, if the material is too small, such as 1-2cm, a blowing machine should be added at the outlet, if the material is the normal size, it is the normal discharging conveyor belt. There are many models of this machine, but all models’ feeding and discharging conveying lengths are 3m.

Fabric fiber cutting machine maintenance

The size of the chopped material is even, the length can be adjusted arbitrarily, the whole textile waster chopper is easy to move, the work is stable and reliable, and the maintenance is very convenient at the same time.

Fiber cutting machine
Fiber cutting machine

1-2 people can operate the fabric cutting machine for fabric waste recycling.

In normal use, the blade needs to be sharpened once every half a year. So we also recommended matching with a blade sharper machine for you to sharpening the blades timely.

Raw materials that can processed by textile fiber shredder machine

Textile fiber cutting machine can quickly cut up all kinds of soft fiber, carbon fiber, seaweed fiber, biological fiber, bamboo fiber, textile clothing scraps, waste yarn, waste line, old clothes, paper cotton, hemp, fishing net, non-woven, latex, leather, palm silk, graphene, sponge, cotton, car interior scraps, polished leather, leather, and other materials.

Finished product display of waste cotton cutting machine

Cutting effect
Cutting effect

Parameter of textile fiber shredding machine

ModelSL800BSL1200BSL1600BSL2400B
Motor(kw)7.5+1.515+2.218.5+3.022+3.0
Boundary dimension(mm)3200*1000*12007000*1500*15007000*1800*19505800*2200*1950
Theoretical yield (kg/h)500-800800-12001000-30002000-5000
The shear size (mm) 5-1505-1505-30010-300
Input with (mm) 2800*3503000*5203000*7203000*1100
Output with (mm) 2800*3503000*5203000*7203000*1100
Shearing Thickness (mm) 30-5030-8030-15030-200
Cutting machine’s parameter

Working video of the textile fiber cutting machine

The following video shows how the textile fiber cutting machine chops waste clothes and leather.

Fabric waste shredder packing & delivery

Our factory has been manufacturing and exporting textile fiber recycling equipment for more than 10 years. Today, our factory ships this fabric fiber cutter to many foreign customers almost every month. In general, the lead time from our factory is 15 days. We can also customize the machine according to the needs of customers.

Packing & delivery
Packing & delivery
